USB-A ports are confusing enough, with their different colors that sometimes mean something (but not always). USB-C, however, is next-level because most ports look exactly the same, but they still have different capabilities on the inside.

But the universal format of USB-C has a lot of perks that, in my opinion, more than make up for its nonsensical nature.

One charger can now power almost everything you own

All through a connector smaller than a fingernail

One USB-C charger used to top out at around 100W, which was fine for phones but left power-hungry laptops tethered to their own heavy, unwieldy bricks. USB Power Delivery 3.1 pushed that ceiling to 240W, and that single change is why you only need one charger instead of four (provided you actually splurge on a charger that can hit 240W).

240W isn’t a given in USB-C, but if you do get it, you’re covered for pretty much everything with a USB-C port, from earbuds up to laptops. The best part is that a high-wattage charger doesn’t force that power onto smaller devices, so it’s not like you’re going to accidentally fry your expensive phone with a 240-watt charge when it can’t handle it. A phone rated for 18W pulls 18W whether it’s plugged into a 30W charger or a 240W charger.

The catch is the cable, and yeah, it can trip you up. Anything above 100W needs a cable rated for 240W with an EPR e-marker chip inside, because standard 5A cables cap out at 100W no matter what charger you pair them with.

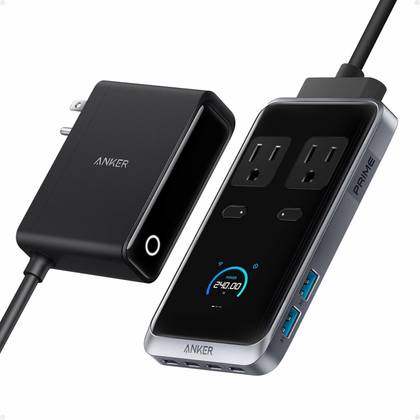

Anker 8-in-1 Prime 240W Charging Station on a white background

Input

240 Volts

Voltage

240 Volts

If you want that 240W output across a whopping 8 ports, check out this Anker charging station.


The same port can drive your monitor

DisplayPort Alt Mode can come in handy

Death Stranding 2 running on an OLED monitor Credit: Goran Damnjanovic / How-To Geek

Those of us on desktops can usually find a way to plug in a monitor as ports are abundant, but laptop users haven’t been blessed with the same ease. If you’ve ever bought a laptop that has only one or two ports and wondered how you’re supposed to run an external monitor off of that, DisplayPort Alt Mode is the answer. It’s the reason a single USB-C port can push video to a screen at all.

USB-C isn’t inherently a video connector the way HDMI is. It only carries a picture when the port supports DP Alt Mode, which is a big part of why two identical-looking ports can behave so differently.

There’s a catch here too, though. Charge-only USB-C cables often skip the wiring that Alt Mode needs, so if a display refuses to show up, the cable might be to blame.


High-end 2023 Workstation Laptop with USB 2.0 Port


Stop wasting your USB ports—here are 3 hidden tricks most people miss

Your USB port can do way more than charge and transfer files

The data speeds have gotten genuinely absurd

USB4 makes external drives feel internal

A hand holds the SanDisk Extreme PRO Portable SSD with USB4. Credit: Tim Rattray/How-To Geek

USB-C unlocks speeds that we never thought would be possible over such a versatile form factor. USB4 Version 2.0 doubles the maximum bandwidth to 80Gbps over the same connector, which works out to roughly 10GB per second in theory. Plug an NVMe drive into a good enclosure at those speeds, and it no longer feels like an external drive. You’re avoiding some massive bottlenecks like this, although of course, these cables aren’t cheap. If you do have one, though, editing off it, running a game library from it, or backing up to it feels a lot like working off internal storage.

The number on the box doesn’t tell the whole story, though. A big chunk of a USB4 link often gets reserved for display or PCIe traffic, so a port labeled 40Gbps won’t necessarily hand all of that to your drive, and the port has to split its lanes between jobs.

The upside is that this speed jump didn’t leave your old gear behind. USB4 stays backward compatible with USB 3.2, USB 2.0, and Thunderbolt 3, so slower devices still work, they just run at whatever pace they can handle. Thunderbolt 5 is built on the same USB 4 Version 2.0 foundation, which means that the two standards have basically converged on one connector and one set of speeds. It’s confusing, yeah, but who doesn’t like more flexibility?

One cable can run your entire desk

Dock once, plug in everything

The Razer Thunderbolt 5 dock port selection on the back, showing Ethernet, Thunderbolt, USB-A, and more. Credit: Patrick Campanale / How-To Geek

This is the ultimate perk for many: plug your laptop into a dock or a hub, and that single connection handles power, video, Ethernet, and whatever peripherals you’ve got hooked up. No more plugging in six different things every time you sit down. Again, desktop users may not feel this as strongly, but those of us on laptops? Yeah, that’s pretty huge.

The one thing to keep in mind is that everything on that dock shares a single upstream link, so a couple of 4K displays, a network adapter, and a fast SSD all pull from the same pool of bandwidth. A dock covered in ports can easily slow to a crawl if you hammer everything at once, but that’s not super obvious when you buy them, which is why you might wonder why certain ports don’t work. They do, it’s just that you’re putting the entire dock through a bit too much work.


A confusing port is still better than five simple ones

USB-C’s naming situation is still a mess, and you’ll always have to double-check what your specific port and cable can actually do. I’ve been burned this more than once, which is why I finally spent 10 minutes mapping all my ports recently. Still, one connector can charge nearly everything you own, drive your displays, move data at super fast speeds … It’s a pretty good deal, if you ask me.

Connection

USB-C

Power supply included

No

Anker makes famously solid USB gear, and this hub gives you seven different ports.




Source link

Leave a Reply

Subscribe to Our Newsletter

Get our latest articles delivered straight to your inbox. No spam, we promise.

Recent Reviews


1,000W, 10-port charger for $45... predictably disappointing.

1,000W, 10-port charger for $45… predictably disappointing.

Adrian Kingsley-Hughes/ZDNET

Follow ZDNET: Add us as a preferred source on Google.


ZDNET’s key takeaways

  • Things that look “too good to be true” invariable are just that.
  • This example got dangerously hot in a short period of time before dying.
  • There’s no legitimate charger that comes close to delivering on the 1,000W promise.

Being a tech reviewer for a living means that I get offered some very interesting things. Not interesting as in Bugatti supercars or jewel-encrusted Fabergé eggs, but interesting as in “this thing could easily be a fire hazard — want to take a look?”

Also: The best GaN chargers of 2026: Expert tested

Submissively, I often say yes. And I’m glad I did with the most recent pitch, because it was very interesting indeed.

Meet the “interesting” charger

This time around, the thing of interest was a charger that claimed to deliver an incredible 1,000W through its ten ports — four 140W USB-C ports, four 100W USB-C ports, and two 20W USB-A ports.

The person who bought this charger told me that they’d plugged it in, used it to charge their phone for “a few minutes,” got worried when it became “a little hot,” and unplugged it.

That's a lot of promise... but (spoilers), they don't deliver!

That’s a lot of promise… but (spoilers), they don’t deliver!

Adrian Kingsley-Hughes/ZDNET

The unit was suspiciously light and plasticky, especially given its built-in power supply. Compare this to Ugreen’s Nexode 500W charger, which weighs a hair under 5 lb.

There was also a slight whiff of melty plastic, which made me think that this had been a bit more than a little hot.

Also: This $4 router reboot timer is the cheap internet fix I didn’t know I needed – and it works reliably

Color me suspicious, but I had a gut feeling that the only way this charger would be able to push out 1,000W would be if it caught fire.

Turns out I wasn’t far wrong.

How long would it last? Answer: Minutes

Talk is cheap. It was time to test the charger.

So I plugged it in, turned it on, and started using it. Within a couple of minutes of starting to use it, I noticed a few things:

  • No matter what I tried, I couldn’t persuade the charger to deliver more than about 60W from any of the ports.
  • As for peak output, I managed to get close to 250W.
  • The power output was very uneven and noisy, fluctuating wildly. The more ports I used, the worse it got.
  • The unit got very hot to the touch very quickly, even under light loads.
  • But… before I could get the thermal camera out to check how hot it got, there was a pop and the unmistakable smell of “Magic Smoke.” The charger had been sent to Silicon Heaven within minutes.

Annnnd… POP! This is the moment the charger gave up the ghost.

Adrian Kingsley-Hughes/ZDNET

Diagnosis time

Time to take it apart and have a look inside. For an item that plugged into the mains power, this unit was shockingly easy to take apart.

A thin sheet of easily removable plastic is a that separates curious hands from live AC power.

A thin sheet of easily removable plastic is a that separates curious hands from live AC power.

Adrian Kingsley-Hughes/ZDNET

And even unplugged and broken, it was capable of delivering zaps! If the case came off while this was plugged into an outlet, it could very easily be deadly.

There’s charge still in some of the capacitors, and these could deliver quite a zap despite the unit being broken and unplugged!

Adrian Kingsley-Hughes/ZDNET

After getting inside, the unit was filled with a grey goo that I’d seen in a previous disappointing charger I’d taken apart. This is a thermal paste that’s used to try to dissipate the heat generated by the components.

It’s not really going to work because it’s sealed in a plastic box with no effective heatsink. It’s a token gesture at best. At worst, it creates a mass that’ll slowly heat up and hold temperature because it’s got no way to get rid of it.

Behold the grey goo!

Adrian Kingsley-Hughes/ZDNET

Next to this goo was a bank of capacitors — the black cylinders in the photo — which were the cause of the failure. They’d clearly overheated, with three of them showing signs of bulging.

The problem!

Adrian Kingsley-Hughes/ZDNET

Well there’s the problem!

I also noticed that two of the components — bridge rectifiers that are used to turn AC mains into DC — have been fixed on an angle to make the touch a metal heatsink. It’s not really an effective way to cool down components.

The bottom line

Another “too good to be true” device bites the dust. It’s not the first one I’ve come across, and it won’t be the last.

Moral of the story here is that manufactures are using big number marketing — in this case 1,000W and masses of ports — to scalewash poor quality products.

This might be a half-decent product if it was built to deliver 100W, but there’s no end of competition at that end of the market. Silkscreen “1,000W” on the outside, sprinkle in a few reviews that feel scripted and fake, and all of a sudden it’s interesting and exciting… right up until it blows up.

Also: My top 7 laptop-bag essentials now, after decades of remote work

I know of no 1,000W charger. In fact, the 500W Ugreen Nexode is the highest-power charger that I’ve tested that’s legit. And the price is also legit — $250.

But it’s built to deliver on what it promises and is packed with safety features, including “tip-over protection,” which cuts the output when the unit tips over and prevents it from falling on its side, where it can’t dissipate heat effectively. Now that’s an attention to safety that I like to see in a product that handles that much power.

But if you want 1,000W of output, you’ll have to buy two and duct tape them together.
