Modern enterprise infrastructure is no longer judged solely by raw compute performance. Today, true sustainability means operational survivability, resilience, predictability, fault tolerance, and the ability to absorb catastrophic hardware or network failures without a single millisecond of business interruption.

For high-load, zero-downtime industries such as FinTech, AdTech, iGaming, SaaS, real-time AI platforms, and media streaming, infrastructure sustainability begins at the silicon level and extends across the entire network topology. This guide breaks down how to engineer an enterprise-grade, active-active, geo-distributed infrastructure from the ground up.

What Sustainable Infrastructure Actually Means?

In enterprise IT, sustainability is often conflated with environmental green initiatives. While energy efficiency (PUE optimization) is critical, structural infrastructure sustainability primarily refers to operational survivability.

A truly sustainable platform must maintain deterministic performance even during simultaneous hardware failures, core switch outages, localized power grid collapses, massive DDoS attacks.

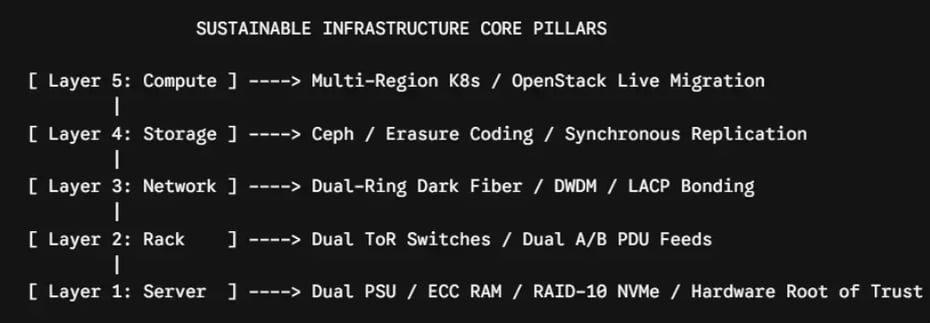

Layer 1: Redundancy Starts Inside the Server

Resilience begins at the physical bare-metal layer. A sustainable architecture operates on an assumption of inevitable hardware failure.

Physical Component Hardening

Every enterprise-grade dedicated server within the fleet must feature:

• Dual Hot-Swappable PSUs: Connected to independent A/B power distribution units (PDUs) fed by separate utility grids or UPS systems.
• ECC Memory (Error-Correcting Code): Utilizing Advanced ECC or memory scrubbing modes to detect and correct multi-bit memory errors, preventing kernel panics and silent data corruption.
• Redundant Cooling Fans: Hot-swappable, N+1 or N+2 fan configurations capable of ramping up RPMs dynamically if a single fan fails.

Storage Redundancy & IOPS Predictability

To eliminate storage as a failure domain while maintaining maximum IOPS under production workloads, infrastructures rely on strict physical and logical partitioning:

• Local NVMe Arrays: Configured via hardware or robust software RAID (such as RAID-10 or RAID-1) to allow instant drive rebuilds without degrading application read/write limits.
• Distributed Storage Nodes: Deploying NVMe-over-Fabrics (NVMe-oF) or Ceph clusters to decouple compute from stateful storage, allowing seamless node failures.

Layer 2: Eliminating Single Points of Failure (SPOFs) in the Rack

A perfectly redundant server will still fail if its host rack contains architectural bottlenecks. Standard enterprise topology dictates an entirely isolated, dual-pathed architecture at the rack level.

Layer 3: Network Topology and Dual-Ring Dark Fiber Architecture

The network layer is traditionally where infrastructure fragility peaks. Standard primary/backup routing models introduce unpredictable failover convergence times. High-load enterprise platforms require active-active network topologies with deterministic latency.

The Physics of Sub-1ms RTT

To achieve a Round-Trip Time (RTT) below 1 millisecond, the physical distance between data centers is strictly limited by the speed of light in fiber optic cables.

The speed of light in a vacuum is approximately 300,000,000 meters per second. However, inside a standard silica fiber optic cable, light travels slower due to the refractive index of the fiber core (approximately 1.467).

The propagation speed inside the fiber is calculated as:

v = c / n

Where:

• v = propagation speed in the fiber
• c = speed of light in a vacuum
• n = refractive index of the fiber

This results in an effective signal propagation speed of approximately:

204,000 kilometers per second

Since RTT measures the full round trip, the theoretical maximum one-way distance for sub-1ms RTT is roughly:

100 kilometers

In real-world deployments, the achievable distance is even shorter because of:

• fiber routing inefficiencies,
• optical switching delays,
• DWDM equipment latency,
• router and switch processing,
• and physical cable path deviations.

As a result, enterprise infrastructures targeting consistent RTT below 1ms typically place interconnected data centers within approximately 50–80 kilometers of each other and connect them using dedicated dual-ring dark fiber topology.

This architecture enables:

• synchronous storage replication,
• active-active database clusters,
• ultra-fast failover,
• live VM migration,
• and geographically distributed high-availability environments without significant latency penalties.

This translates to roughly 1 ms of RTT for every 100 km of physical fiber run (since the signal must travel to the destination and back). Therefore, to guarantee a sub-1ms RTT (including a buffer for network switch serialization and encapsulation delays), data centers must be located within a 40–75 km fiber routing radius.

Dual-Ring Dark Fiber & DWDM

By leasing unlit (dark) fiber paths, enterprises construct dedicated, private dual-ring topologies. Using Dense Wavelength Division Multiplexing (DWDM), a single pair of optical fibers is multiplexed into dozens of independent wavelengths, providing massive multi-terabit throughput without public internet routing instability.

If an external construction incident cuts Route 1, optical transponders automatically reroute traffic via Route 2 using protocols like APS (Automatic Protection Switching) or G.8032 ERPS (Ethernet Ring Protection Switching). This convergence happens at the hardware layer in less than 50 milliseconds, keeping the network degradation completely unnoticeable to the application layer.

Layer 4: Geo-Distributed Storage Replication & The Split-Brain Dilemma

When operating multiple data centers within a sub-1ms RTT envelope, selecting the correct storage replication strategy determines whether data remains consistent during an isolation event.

Synchronous vs. Asynchronous Replication

• Synchronous Replication (RPO = 0): Every write operation must be written to local storage and transmitted, received, and committed to the remote data center’s storage before an acknowledgment (ACK) is sent back to the client application.
• Why Sub-1ms RTT is mandatory: If your inter-DC latency spikes to 20ms, your database write performance drops from thousands of transactions per second to a maximum of 50 per single thread. Sub-1ms RTT allows synchronous replication to occur with negligible application overhead.
• Asynchronous Replication (RPO > 0): Writes are committed locally and immediately acknowledged. A background process batches and replicates changes to the remote facility. While this supports long-distance replication, an abrupt primary data center failure guarantees data loss equal to the replication lag.

Mitigating Split-Brain Scenarios

In an active-active multi-data-center setup, a sudden loss of network connectivity between sites can cause both locations to assume the other is dead. Both sides will attempt to write to the same database tables simultaneously, corrupting the global state.

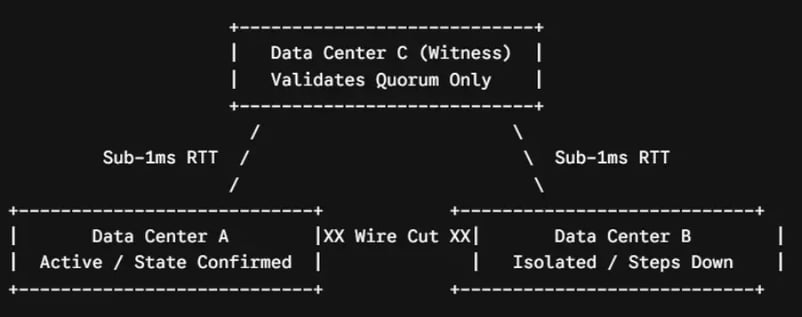

⚠️ Engineering Rule: Quorum Require Three Points

To prevent split-brain errors, true high-availability architectures require a third, independent tie-breaker location to establish a quorum.

By placing a lightweight witness node or an odd-numbered cluster node in a third physical zone, distributed clustering engines (such as Etcd, Consul, or Galera) can execute an automated vote. If Data Center A can talk to the Witness but Data Center B is completely cut off, Data Center B will gracefully step down, preserving data integrity.

Layer 5: Distributed Compute Architecture with K8s and Anycast

With low-latency networking and consistent storage in place, the compute layer can run across data centers in a unified, elastic fabric.

Using Kubernetes (K8s) multi-cluster topologies or cross-site OpenStack control planes, workloads are scheduled dynamically based on resource availability. If a cluster node in Facility A degrades, the control plane orchestrates a seamless reschedule of pods onto Facility B.

Global Traffic Steering via BGP Anycast

To route users to the healthiest and closest data center, modern infrastructures move away from standard DNS round-robin routing (which suffers from aggressive ISP caching and slow convergence). Instead, they deploy BGP (Border Gateway Protocol) Anycast.

With Anycast, both Data Center A and Data Center B advertise the same IP address space to upstream Tier-1 internet transit providers.

• Under normal conditions, users are naturally routed to the topologically closest data center.
• If Data Center A drops completely offline, the local BGP daemon drops the route advertisement. Within seconds, the global internet routing table converges, and all incoming user traffic is automatically directed to Data Center B without changing a single client-side DNS record.
