Before I made the jump to a unified mesh Wi-Fi network, I was confronted with the conundrum of moving into a bigger house, and suddenly having no Wi-Fi signal in my office or in our bedroom.
Wi-Fi repeaters are terrible and finicky, but as a renter it’s not like I could properly install Ethernet either. That’s when I turned to powerline Ethernet. A technology I’d heard of but never considered. While I no longer need it today, there are plenty of you out there who are perfect candidates for it, and here’s why.
Raw Ethernet isn’t the only wired option
Accept some substitutes
There’s a good reason those in the know consider Ethernet the gold standard for home networking. It’s cheap, it’s reliable, and has virtually zero latency. Even the latest Wi-Fi 7 technology can’t match a good Ethernet setup.
The golden rule is that if something can be connected via Ethernet, it should be. With a cheap network switch or two, you can connect a whole home’s worth of gear, but the downside is that installing Ethernet properly is a big job. Getting up in the roof or under the floor, drilling holes in walls, crimping connectors. It’s better to get a pro to do it, of course, but that defeats the point of Ethernet being an affordable solution.
It’s no wonder people put up with the downsides of Wi-Fi, given the hassle of completing a serious Ethernet installation. But, some engineering geniuses realized that modern homes already have wires running through them: their electrical wiring. That’s where powerline adapters come into the picture.
- Brand
-
TP-Link
- Ports
-
1x Ethernet

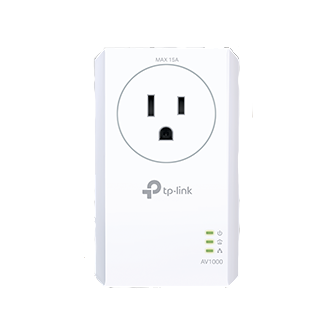

Use these powerline Ethernet adapters to extend your wired network without laying down fresh cable.
What powerline adapters actually do (and why they’re so easy to use)
There’s room for more than volts
What the designers of powerline technology realized is that there’s a little bit of wiggle room in our electricity supply that allows for signaling without causing any issues with power delivery. These are minute little modulations sent into the wiring of your home that allow any powerline adapters that are plugged in to communicate with one another.

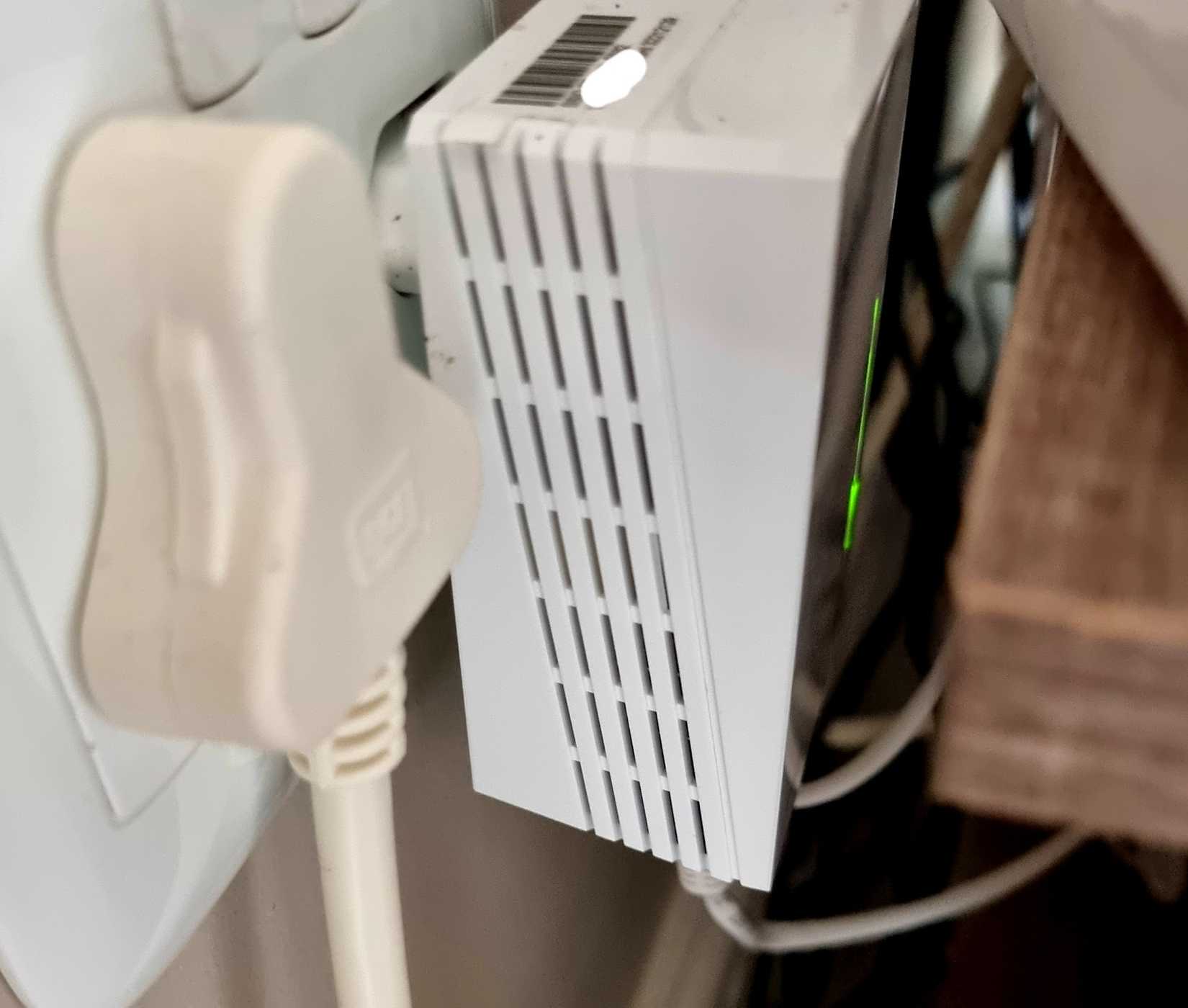

So, you might connect a main powerline unit to an Ethernet port on your router and then plug it into a nearby outlet. Then plug another adapter into a distant room where it offers Ethernet connectivity to your devices. From the perspective of the router and client device, they’re connected by regular Ethernet, and the powerline system does all the translation.
Some powerline adapters also have Wi-Fi access points built in, so you can use your Wi-Fi devices in those rooms that have the adapters too.
The best part is that there is no drilling, no crawling around dusty spaces, or any of that drama. Just plug in your adapters as you please, and they’ll usually sync automatically with a press of a button.
QuizPowerline ethernet adapters
Trivia challenge
From electrical wiring to wired networking — how much do you really know about powerline adapters?
HistoryTechnologyStandardsFun FactsHardware
What decade saw the first serious commercial development of powerline networking technology for home use?
Correct! The 1990s were the foundational years for home powerline networking, with early products and standards work beginning mid-decade. The technology aimed to solve the problem of networking homes without running new cables through walls.
Not quite. Powerline home networking took shape in the 1990s, when the idea of using existing electrical wiring to carry data first became commercially viable. Earlier decades had industrial powerline signaling, but consumer home networking came later.
Which industry alliance, founded in 1998, created the first widely adopted powerline networking standard for home use?
That’s right! The HomePlug Powerline Alliance was founded in 1998 and released the HomePlug 1.0 specification in 2001. It brought together companies like Intel, Cisco, and Motorola to standardize how data travels over household electrical wiring.
The correct answer is the HomePlug Powerline Alliance, formed in 1998. It was the group that gave powerline networking a real commercial footing, releasing HomePlug 1.0 in 2001 and eventually evolving the standard all the way to HomePlug AV2.
Powerline adapters transmit data by modulating signals onto electrical wiring. What frequency range does HomePlug AV primarily use for this?
Correct! HomePlug AV operates in the 2–30 MHz frequency range, using a technique called Orthogonal Frequency Division Multiplexing (OFDM). This range sits well above the 50/60 Hz AC power frequency so the two signals don’t interfere with each other.
The right answer is 2–30 MHz. HomePlug AV cleverly uses this band — far above your home’s 50/60 Hz electrical frequency — and employs OFDM modulation to pack data efficiently onto those same wires carrying your electricity.
Powerline adapters are known to perform poorly when plugged into which type of device instead of directly into a wall outlet?
Spot on! Surge protectors and power strips contain filters designed to block electrical noise — and unfortunately, they can’t tell the difference between harmful spikes and your network data. Plugging a powerline adapter into one can reduce speeds dramatically or kill the connection entirely.
The culprit is surge protectors and power strips. Their built-in noise filters are too aggressive and can strip out the very data signals your powerline adapter is trying to send. Always plug powerline adapters directly into a wall outlet for best results.
What theoretical maximum throughput did the HomePlug AV2 MIMO specification advertise when it was introduced in 2012?
Correct! HomePlug AV2 with MIMO (Multiple Input, Multiple Output) boasted a theoretical maximum of 2 Gbps by using all three wires in a modern electrical circuit — live, neutral, and ground — as separate signal paths. Real-world speeds are much lower, but it was a big leap forward.
HomePlug AV2 MIMO actually advertised a theoretical peak of 2 Gbps. It achieved this by treating the live, neutral, and ground wires as distinct signal channels simultaneously, borrowing the MIMO concept familiar from Wi-Fi. Real-world performance is considerably more modest, of course.
Why can two powerline adapters in the same building sometimes fail to communicate with each other at all?
Exactly right! Many North American homes use split-phase 240V wiring with two 120V legs. Outlets on different legs are electrically isolated at high frequencies, so powerline signals can’t cross between them without a phase coupler. It’s a quirky gotcha that trips up many users.
The surprising answer is electrical phase separation. In split-phase wiring common in North America, two legs of power run through a home, and data signals struggle to jump between them. A phase coupler at the breaker panel can fix this, but most people don’t know they need one.
Which of these is a genuine real-world use case that made early powerline adapters popular before Wi-Fi became ubiquitous?
Right! In the mid-2000s, powerline adapters found a sweet spot connecting living room devices like set-top boxes, early smart TVs, and gaming consoles to routers in another room. Running an Ethernet cable through walls wasn’t practical, and Wi-Fi was still unreliable for streaming.
The killer early use case was linking set-top boxes and HDTVs to home broadband routers. Before Wi-Fi was fast and reliable enough for video streaming, powerline adapters gave living room devices a solid wired connection without the need to drill through walls or floors.
The X10 home automation protocol, which predates modern powerline networking, used electrical wiring to send signals as far back as which year?
Correct! X10 was developed by Pico Electronics in Scotland and launched in 1975, making it one of the earliest examples of using household electrical wiring to carry control signals. It was designed for home automation — turning lights and appliances on and off — not data networking, but it proved the core concept worked.
X10 dates back to 1975, developed by Pico Electronics in Scotland. It was originally built for home automation rather than networking, but it demonstrated decades before HomePlug that ordinary household wiring could carry meaningful signals alongside mains electricity.
Your Score
/ 8
Thanks for playing!
Where powerline adapters work surprisingly well
OK, maybe not that surprisingly
While you can use powerline Ethernet to connect anything, I’ve found it’s particularly useful for connecting stationary devices that benefit from a wired connection. Consoles, smart TVs, desktop PCs, and other similar devices benefit from low-latency, reliability, and having a decent amount of bandwidth.
Since they also need to be plugged in at the wall, it makes it all simple. As long as you can connect the powerline adapter directly to the wall (it won’t work through an extension or surge adapter), you’re in business.
The downsides you should know before buying one
So, if powerline Ethernet is so great, why are we even using regular Ethernet? Well, it turns out there are plenty of tradeoffs. For one thing, they are more expensive than using regular Ethernet. So if you have to do extensive wiring, it might not be worth the money.
Also, how reliable and speedy these adapters are depends quite a lot on the quality of the wiring in your home. If there are electrical faults, or if the wiring is very old, then you might not get good performance or reliable sync. Also, if your house has multiple circuits, then adapters on those circuits can’t talk to each other!
The biggest issue is the advent of affordable mesh networking. This is the most elegant way to get the internet all over your home. I think powerline Ethernet is still an excellent point-to-point solution, but if you need to replace more than just one or two Ethernet lines, it’s probably more sensible to invest in mesh pods.
Nonetheless, I always keep one basic powerline kit in my drawers, because you never know when you’ll need it!
