Last year, I bought a small Cudy TR3000 travel router with the kind of confidence people have before a project quietly disappears into a drawer. The idea was simple enough. I wanted a router I could carry around, plug in anywhere, and reach the devices on its local network from outside. Then I did what many of us do with small useful-looking gadgets. I put it aside, told myself I would set it up soon, and let it sit around for months.
When I finally picked it up again, I first checked the official Cudy firmware, and honestly, it was not bad. It was much better than the usual cheap-router firmware experience. Still, the stock firmware had one problem for me: it did not support Tailscale. ZeroTier was available, but the built-in ZeroTier options were limited. I wanted more control, so I finally had an excuse to do what I had probably bought the router for in the first place: flash OpenWrt on it.
Flashing OpenWrt
The intermediate firmware matters

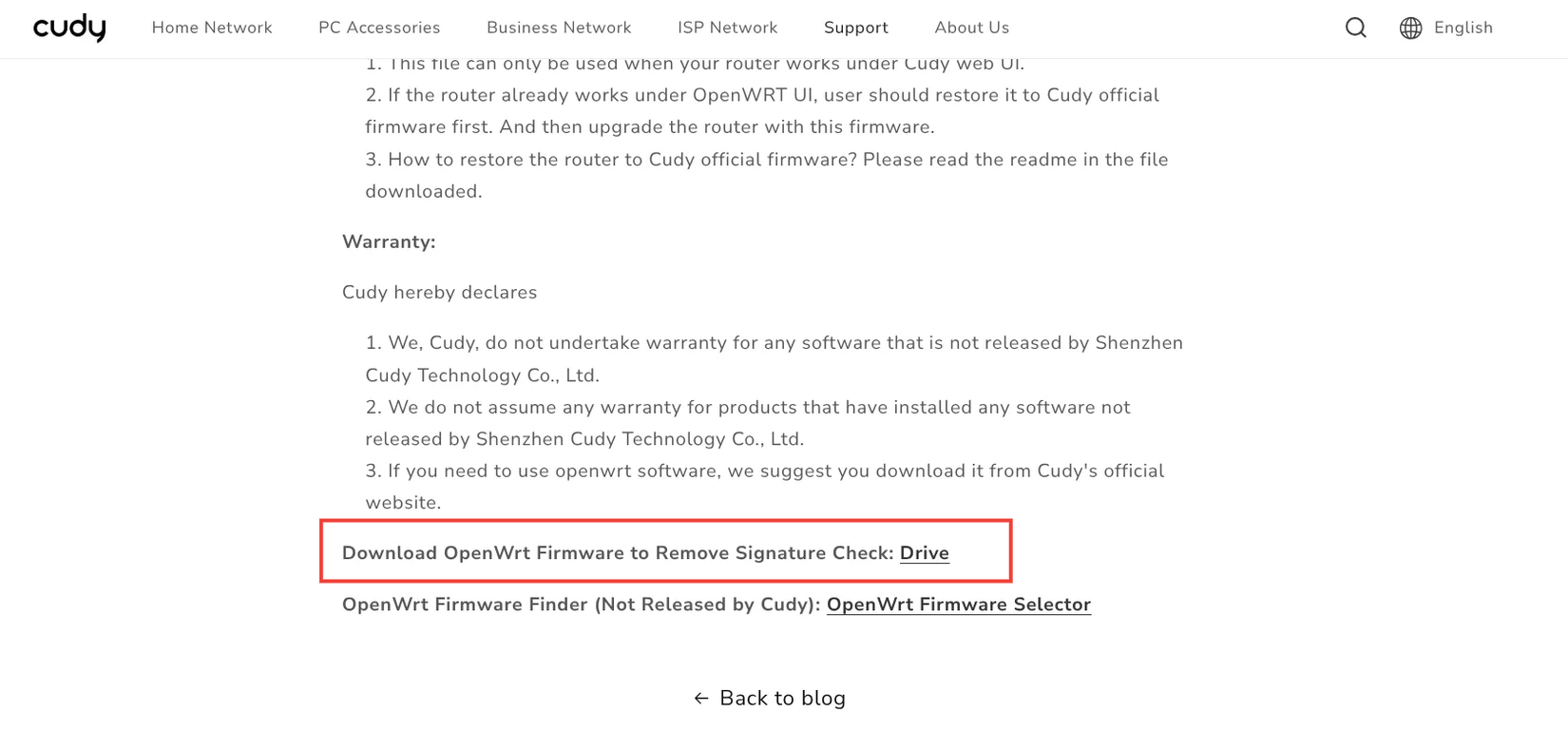

The first step was not flashing OpenWrt directly. Cudy provides an intermediate firmware for the TR3000. The file I used was:
TR3000 V1.zip
This intermediate firmware is important because its main job is to remove the RSA signature checks from the stock firmware. Without that step, the router may refuse normal OpenWrt images. The flashing path was fairly straightforward. I first downloaded Cudy’s OpenWrt intermediate firmware and flashed it through the firmware upgrade option under advanced settings in the stock interface. After the router rebooted into the intermediate firmware, I went to the OpenWrt Firmware Selector, selected the Cudy TR3000 v1, downloaded the correct sysupgrade image, flashed that image, and then booted into a clean OpenWrt installation.
The important detail is that the second OpenWrt file should be the sysupgrade image, not the factory image. You also have to match the exact hardware version. In my case, that meant Cudy TR3000 v1. You can use either the official OpenWrt download page or ImmortalWrt, depending on what build you want. I went with the OpenWrt route because I wanted a clean base first, then I could add only the packages I needed.
Your router isn’t just for Wi-Fi—here’s everything else it can do
Your Wi-Fi router can do way more than you think
Creating the ZeroTier network
The router needs to join your overlay network
After the flash finished and the router rebooted, I opened the OpenWrt interface and set the root password first. Once OpenWrt was running, I checked that the LAN was working, then installed ZeroTier. ZeroTier is a software-defined networking tool that creates a VPN between your devices over the internet. Instead of manually exposing ports, setting up complex firewall rules, or relying on a public IP address at home, ZeroTier gives each authorized device an address inside a private network and routes traffic through that network.
9/10
- Brand
-
Unifi
- Range
-
1,750 square feet
- Wi-Fi Bands
-
2.4/5/6GHz
- Ethernet Ports
-
4 2.5G
The basic package that you need to install on OpenWrt is zerotier.Depending on the build and interface packages available, you may also want LuCI-related packages, but the main thing is getting the ZeroTier service installed and running.
After installing it, I enabled ZeroTier, added my network ID, and started the service. On the ZeroTier website, I created a new network. ZeroTier gives you a network ID, and that ID is what you add to the router.

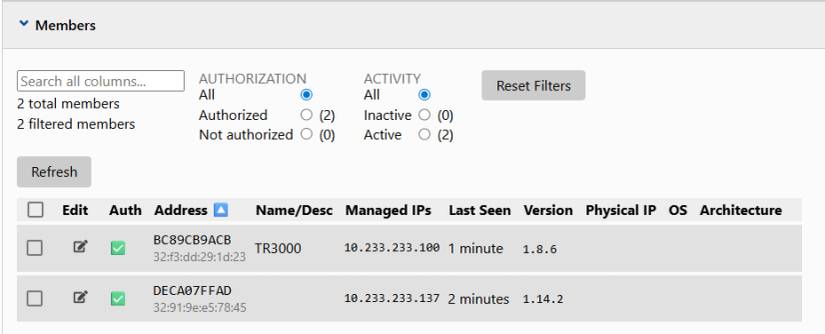

Once the TR3000 tries to join, it appears on the ZeroTier network management page as a new member. You have to approve it there before it can actually communicate with other clients.
In my setup, the ZeroTier network was:
10.233.233.0/24
The TR3000 received this ZeroTier IP:
10.233.233.100
The router’s local LAN was:
192.168.233.0/24
That means the remote clients live on the ZeroTier side, while the devices behind the router live on the LAN side. The router’s job is to connect those two worlds.
Adding the routes
This is the part that makes LAN access work
This $279 Wi-Fi 7 router is the ultimate home network upgrade
You don’t have to break the bank to get an awesome networking setup.
Joining ZeroTier is not enough by itself. Other clients need to know that the TR3000 is the path into the LAN.

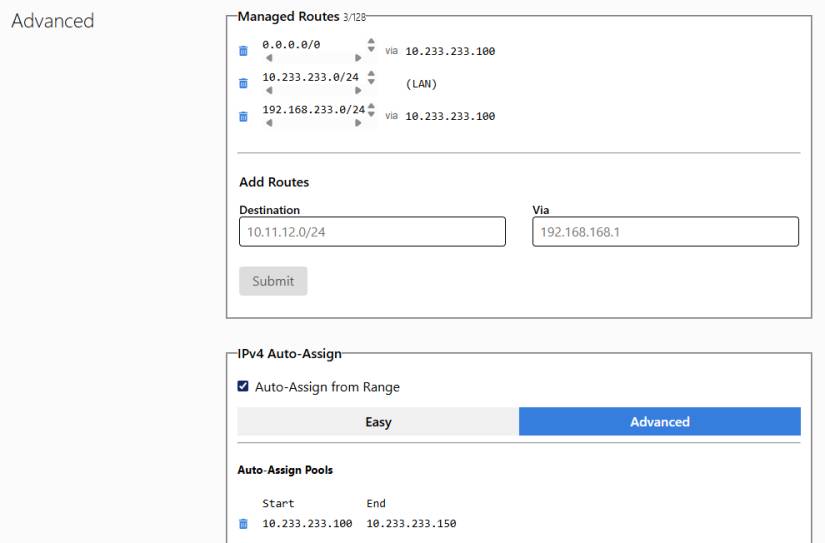

On the ZeroTier network management page, I added these routes:
There are three route settings to configure. The first is 10.233.233.0/24, which is the network segment created for the ZeroTier network and is used for communication between ZeroTier clients, so the Via field should be left blank. The second is 192.168.233.0/24, which represents the LAN behind the TR3000.
Since other ZeroTier clients need to reach this local network through the TR3000, the Via field should be set to the TR3000’s ZeroTier IP address, which in this case is 10.233.233.100. The third route is 0.0.0.0/0, which acts as the default route and allows clients to forward all traffic through the specified device. For this route, Via should also be set to 10.233.233.100, allowing other devices to access the wider network through the TR3000.

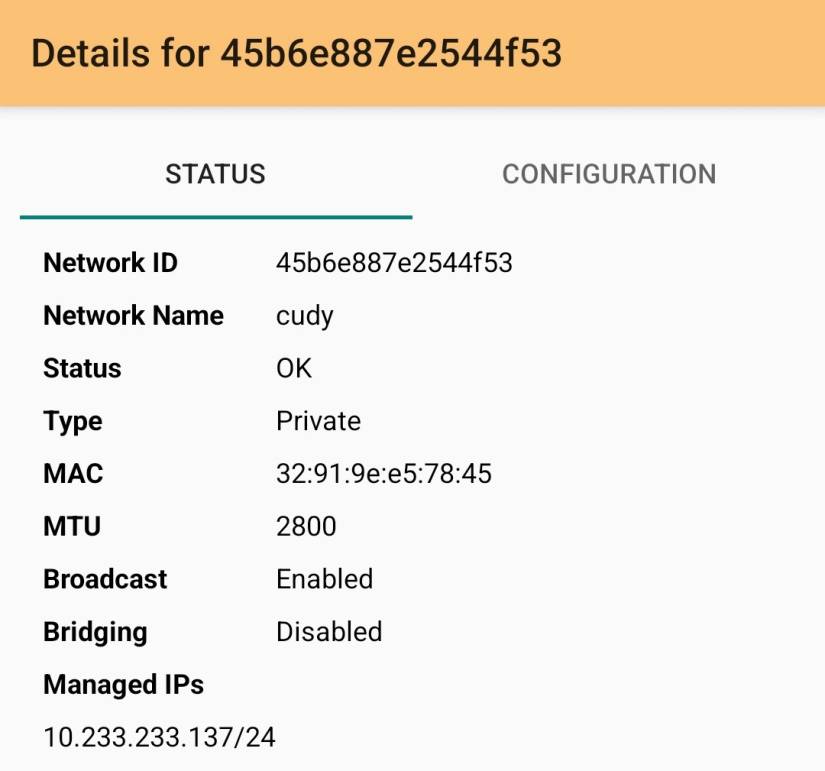

After the router was approved, I added my phone and laptop to the same ZeroTier network. Each device also has to be approved in the ZeroTier dashboard. Once approved, the phone could reach the TR3000’s ZeroTier IP, and more importantly, it could reach devices inside the 192.168.233.x LAN.
On Android, if you want all internet traffic to go through the TR3000, you also need to enable the “Route all traffic through ZeroTier” option, then update the connection.
Without that option, Android can still access the LAN route if the route is configured correctly. With that option enabled, it can also use the TR3000 as an internet gateway.
A tiny router that opens a path back into its LAN
Now TR3000 can sit anywhere with internet access. Devices behind it can stay on its normal LAN but my phone or laptop can join the ZeroTier network from outside. Once connected, I can access the router’s LAN as if I had a private path into that network.
Don’t toss your old router: 5 practical ways to reuse it
You’ll regret throwing out that old router!
That means I do not need to install ZeroTier on every device behind the router. The router handles the tunnel, the small boxes, dashboards, NAS devices, or test machines behind it just stay on the LAN. It also avoids opening ports on the upstream router. That alone makes the setup worth it, because I do not want random services exposed to the internet just because I need remote access once in a while.
