If there are three things folks typically know about me, it’s that I love Linux, I’m an avid reader and I have a bit of an obsession with modding Kindles and Fire Tablets. I would say, “Hey, I resemble that remark!” and then wait patiently while no one catches the reference. One Kindle has eluded me all these years, but I finally found one: a Kindle Fire 7 (2012). I tried to mod it, with a little help from Claude.

I’m modifying a Kindle Fire Tablet 7”

I already had a basic idea of how to do it

My lousy Groucho Marx impression aside, modding Fire Tablets is a fantastic hobby. I found an ancient one, from 2012, that offered an exciting opportunity for a new project. Before upgrading to a Fire Tablet, I predominantly used standard Kindles. So I never really got into Fire Tablets specifically until closer to the 2020s.

I already know a few important things about this tablet, though, at least enough to get started:

1. It’s a Kindle Fire 7” from 2012, running Android 4 (Ice Cream Sandwich was its nickname). The Kindle is sometimes referred to by the code name Tate.
2. The device will not work with Fire Toolbox because its OS isn’t compatible with the de-bloat software, which makes it a bit more of a challenge to mod.
3. This particular device doesn’t even work as a Kindle or Fire Tablet, because it won’t sync with or even let you sign into an Amazon account. I’ve successfully modded several other Fire Tablets, but had no experience working on an older unit. So this will be an exciting project.

I started the project without Claude’s help

Extensive online resources made starting simple

Credit: David J. Buck / How-To Geek

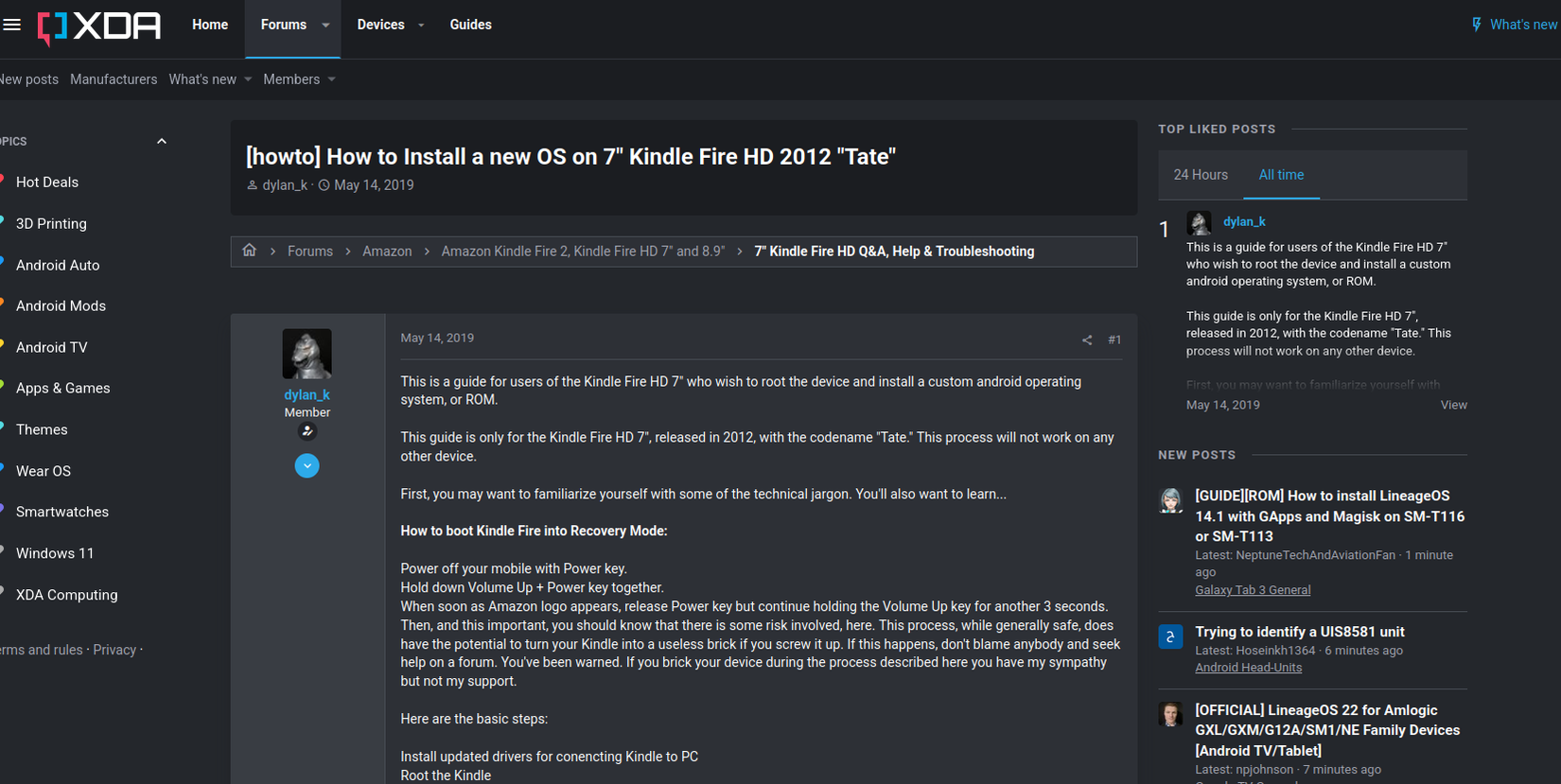

As I do with most of my projects, I spent a few hours researching the process before ever deciding to do it in the first place. My first stop was XDA Forums.

A user posted a magnificent guide for installing a new OS on older Kindle Fire tablets. It has a ton of great information in it, so I wanted to try it out this way first.

It starts with installing drivers on the Kindle, setting up an ADB connection, rooting the Kindle, then flashing a new bootloader onto the device. It seems straightforward, but it’s an old post and some of the links are no longer active. So that was the first hurdle. From there, it got a bit more convoluted.

Bringing Claude into the project is an experiment inside an experiment

Using an LLM for augmentation instead of a crutch

Credit: David J. Buck / How-To Geek

With so much info available, you might wonder why I’d bother bringing Claude in at all. I have a simple reason: to continue a research experiment I’ve been working on involving LLMs this year. I still don’t think they’re as amazing as everyone tells me, but this is an incredibly low-stakes project, and it won’t matter much if Claude hallucinates a bit.

But there’s another reason for experimenting with Claude: direct search and quick access to specific instructions that might otherwise be buried in a forum or beneath a bunch of superfluous text.

I set up a prompt to test its output:

Task: We're going to attempt to mod a very, very old Kindle Fire Tablet. Please examine the included screenshot of the device's information to assist in the research.The goal: Set up this tablet as a basic e-reader. We will need older versions of certain reader apps in APK format.

Despite my concerns about AI technology, I find LLMs fascinating. I’m not afraid of them; I merely have some reservations. So far, I’ve only tested/experimented with them regarding subjects I’m either already extremely familiar with or about which I’m already highly knowledgeable. As a lifelong learner and avid reader, I’ve never been content with letting someone or something think for me.

But as I’m working through the research phase, I’m starting to understand how an app like Claude can be useful or perform under specific circumstances, so this will be a good test.

The first LLM-free attempt didn’t go so well

I thought I bricked the tablet

Credit: David J. Buck / How-To Geek

Since rooting and flashing a new OS onto a Kindle Fire tablet this old isn’t something I’ve really messed around with before (the last time I rooted an Android device was an LG G4 last year), I tried using Windows 10. I already had Android Studio, which includes both the two programs I need for this project: ADB (for the Android Debug Bridge) and Fastboot.

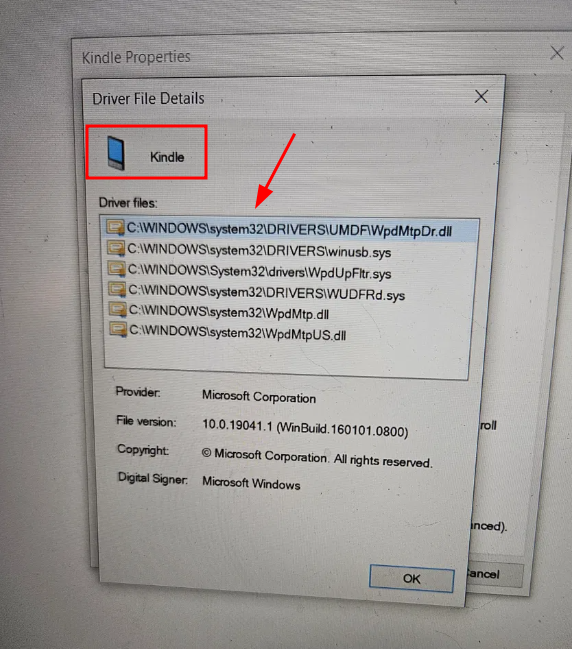

I got started with following the XDA Forums process on Windows, but quickly ran into some problems. Windows didn’t want to establish an ADB bridge, despite having used it several times recently for a different project. Then Fastboot started getting fussy. When I tried to install new drivers on the Kindle as per the instructions, it locked up.

I thought I bricked it.

Fortunately, that turned out not to be the case. Since doing it Windows became an incredibly frustrating experience, I turned to Linux instead. And that’s when I also decided to get some help from Claude beyond basic instructions.

Adventures in modding with Claude

Getting help from an LLM when things got frustrating

Credit: David J. Buck / How-To Geek

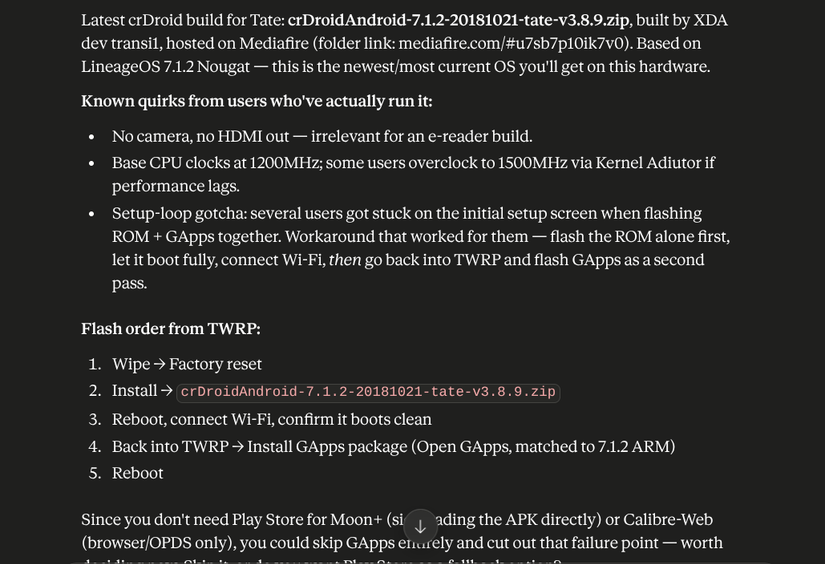

After the Windows fiasco, I prompted Claude about doing it on Linux instead. Again, I already had ADB and Android Studio installed on my machine, but if you need to add them, you can install them with sudo apt install adb fastboot.

Claude was pretty confident about the process working a bit better on Linux. So I double-checked its claim with a Kagi search and some of my go-to forums and websites (like Fedora and Mint’s user forums and Hackaday), which, unsurprisingly, pointed to Linux being preferred but not necessarily better for modding projects. No kidding.

I couldn’t shake the feeling Claude was winging it here. Regardless, it made a few recommendations, like setting up udev instructions (which tell Linux how to handle hardware devices). Fair.

Credit: David J. Buck / How-To Geek

I went ahead and added them, and it worked fine (as expected; it’s similar to what I did to get an old Logitech mouse going a while ago). We immediately had the same issue getting it to connect to Fastboot. This time, however, I was able to use some of my own tricks to troubleshoot. lsusb confirmed it was there, while Claude researched and found examples of the model having similar issues.

After that, it was like being on tech support with a genial robot. After going rounds with unplugging and plugging the device back in, altering the udev instructions, and checking online, we finally figured out why nothing was working: the device requires a physical fastboot cable to connect to Fastboot, period.

It would have been nice to know before starting the project, but I found the information buried on an old forum post from 2013, so it’s not a surprise that I didn’t find it right away for this particular model. Claude merely confirmed it.

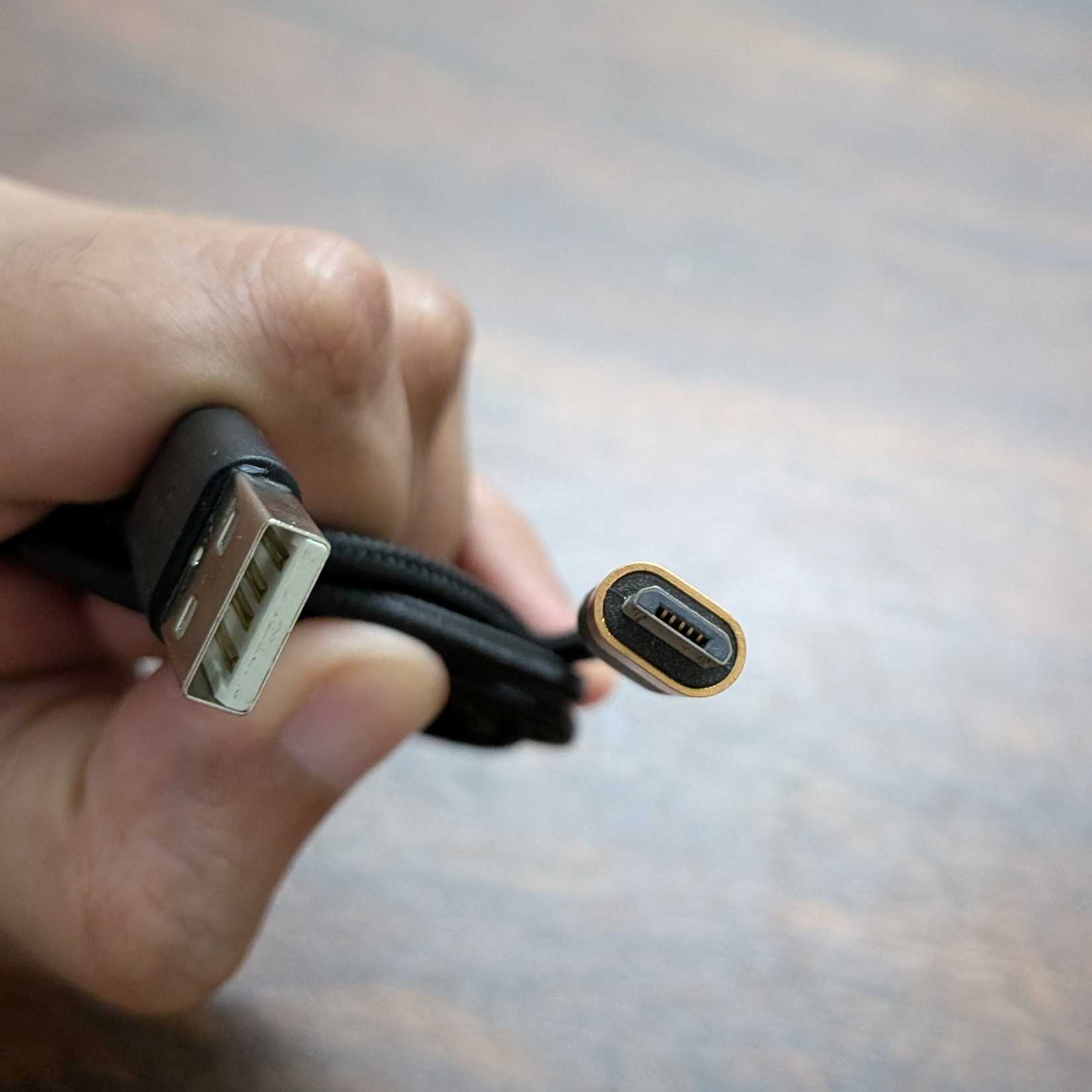

So, if I want to mod this thing, I’ll have to acquire a “Factory Cable” that has specific boot-pin wiring (old Fastboot cables had a specific pin grounded inside the Micro-USB connector that automatically forced the device into Fastboot). That seems like far more effort than it’s worth, considering:

1. I can convert an old phone to a dedicated e-reader if I want, in a significantly less frustrating way.
2. I already have several more recent Android and Fire tablets that I’ve modded successfully for personal and home lab use.

But I probably won’t. It seems like a long way to go to turn a 14-year-old device into a dedicated e-reader.

In the end, nothing we did worked properly

But I drew some strong conclusions from my AI research

I can’t help but feel this experiment was a massive failure. For multiple reasons. Not only was the actual mod a spectacular failure, but even Claude’s assistance was subpar at first.

The only thing Claude really helped with was finding information that was already widely available on the web. I think the only real conclusion I’ve drawn is that it’s a slightly better search engine that’s somewhat easier to interact with. But there are search engines that already do that.

I will say, however, that if AI companies stopped marketing their products as “the most dangerous thing EVAR” and “You can lay off everyone and use it instead” (which is starting to be debunked as well), kick the image/video generation to the curb, and find a better way to power the tools that don’t negatively impact the environment or communities, LLMs would make killer search engines.

As for rooting and modding an old Kindle Fire, it’s an exercise in futility.

0/10 cannot recommend.

I’ll stick to modding newer Fire Tablets

Credit: Dibakar Ghosh | How-To Geek

This seemed like a fun and interesting project. It turned out to be a frustrating nightmare. I would not recommend it unless you already have a Fastboot cable and want to spend a great deal of time troubleshooting.

As for the Claude component, it was helpful despite my overarching concerns about LLMs. It’s becoming more difficult to reconcile my concerns about the tech with how genuinely useful Claude, in particular, has become.

This won’t be my last experiment with the technology, but I’m starting to get a clearer picture of what it can and can’t do, and how it will fit into our lives in the future. And, to think, all of this started with the desire to mod an ancient Kindle Fire…
